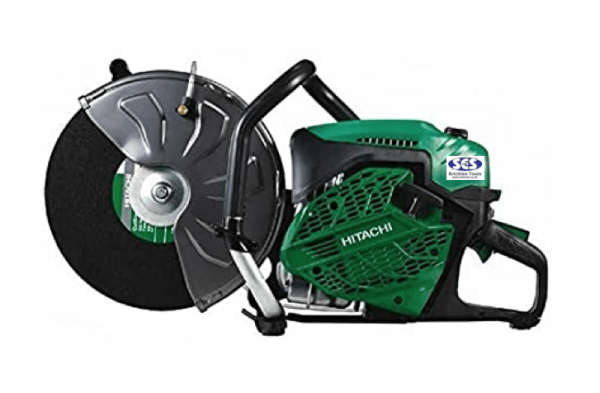

DescriptionThe Hitachi CM75EAP is Powered by 75mL(cc) New PureFire Engine. The engine meets U.S. (EPA PHASE3) and European (STAGE2) emission standards. The Exhaust Pulsation Muffler increases charge efficiency and power, and reduces fuel consumption. The pressure waves reflected in a brunch of the muffler pushes the outgoing fresh mixture flow back to the cylinder. That increases charge efficiency and power, and reduces fuel consumption. And emission levels are significantly reduced by preventing fresh mixture from being exhausted. Stable power is ensured by a compensator keeps the mixing ratio between air and fuel (air-fuel ratio) constant. It prevents the air-fuel ratio from varying due to a clogged air filter and delivers stable power.FEATURES: High power disc cutter. High durability body with metal guards. Decompression system for easier starting. Tool free pre filter system for easy removal and cleaning. Water connection. Coil spring anti-vibration system. Built in accessory holder. SPECIFICATIONS: Displacement – 75.0mL (cc) Max Power – 3.9kW Decomp. System – Yes Fuel Tank Capacity – 1,100mL Abrasive Wheel (Type 41) / Diamond Wheel: Outer Dia. – 305mm (12″) Arbor Hole Dia. – 20mm (51/64″) [ 25.4mm (1″) with Adapter collar ] Max. Speed – 5,100/min or more Max. Thickness – 3.5mm (9/64″) Spindle Max. Speed – 4,200/min Dimensions (L x W x H) – 630 x 225 x 394mm (24-51/64″ x 8-7/8″ x 15-1/2″) Weight (without fuel, wheel and accessories) – 10.4kg (22.9 lbs.) Sound Pressure Level LpA*1 by ISO 19432 Measured – 99.5 dB(A) Uncertainty K – 3.0 dB(A) Sound Power Level LwA*2 by ISO 19432 Measured – 115 dB(A) Uncertainty K – 3.0 dB(A) Vibration Level*1 by ISO 19432 Front handle – 2.2 m/s2 Rear handle – 2.7 m/s2 Uncertainty K – 1.0 m/s2
